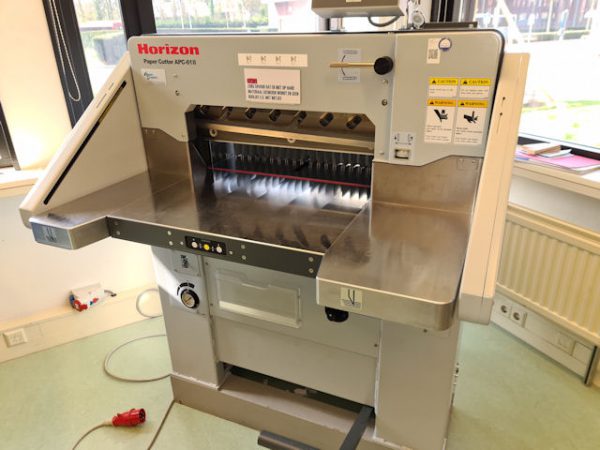

Papiersnijmachine type Horizon APC 61II
In absolut perfecte staat
control:
The ability to save programs to memory
entering data via a touch screen
electronic digital display with an accuracy of 1/10 mm
starting the program with the „start” button
Drive knife and hydraulic pressure plate
photocell
cutting line
plate under pressure to cut delicate materials
foot pedal to try on the pressure
safety covers on the back table
Papiersnijmachine type Horizon APC 61II
In absolut perfecte staat
control:
The ability to save programs to memory
entering data via a touch screen
electronic digital display with an accuracy of 1/10 mm
starting the program with the „start” button
Drive knife and hydraulic pressure plate
photocell
cutting line
plate under pressure to cut delicate materials
foot pedal to try on the pressure
safety covers on the back table
Technical data:
Cutting length 610 mm
Batch depth 620 mm
Stack height 100 mm
Power supply 380 V / 50 Hz
Power 3 kW
Weight 700kg
The set includes: spare knife, shaft, tools for servicing, tapping block, manual.
